Mini Crawler Cranes and Ute Hiab



Ute with a Hiab


            • Supplied with ticketed operator
            • 3.8 meters reach from the base of the crane
            • The Hiab SWL 1000kg at 1 meter and 300kg at 3.8 meters
            • Weight of the ute is 2700kg
            • Height from ground to top of hiab stowed is 2400mm
            • Tray size is 1800 x 2300
            • Crane is certified and has all relevant safety documentation
            • very precise adjustment

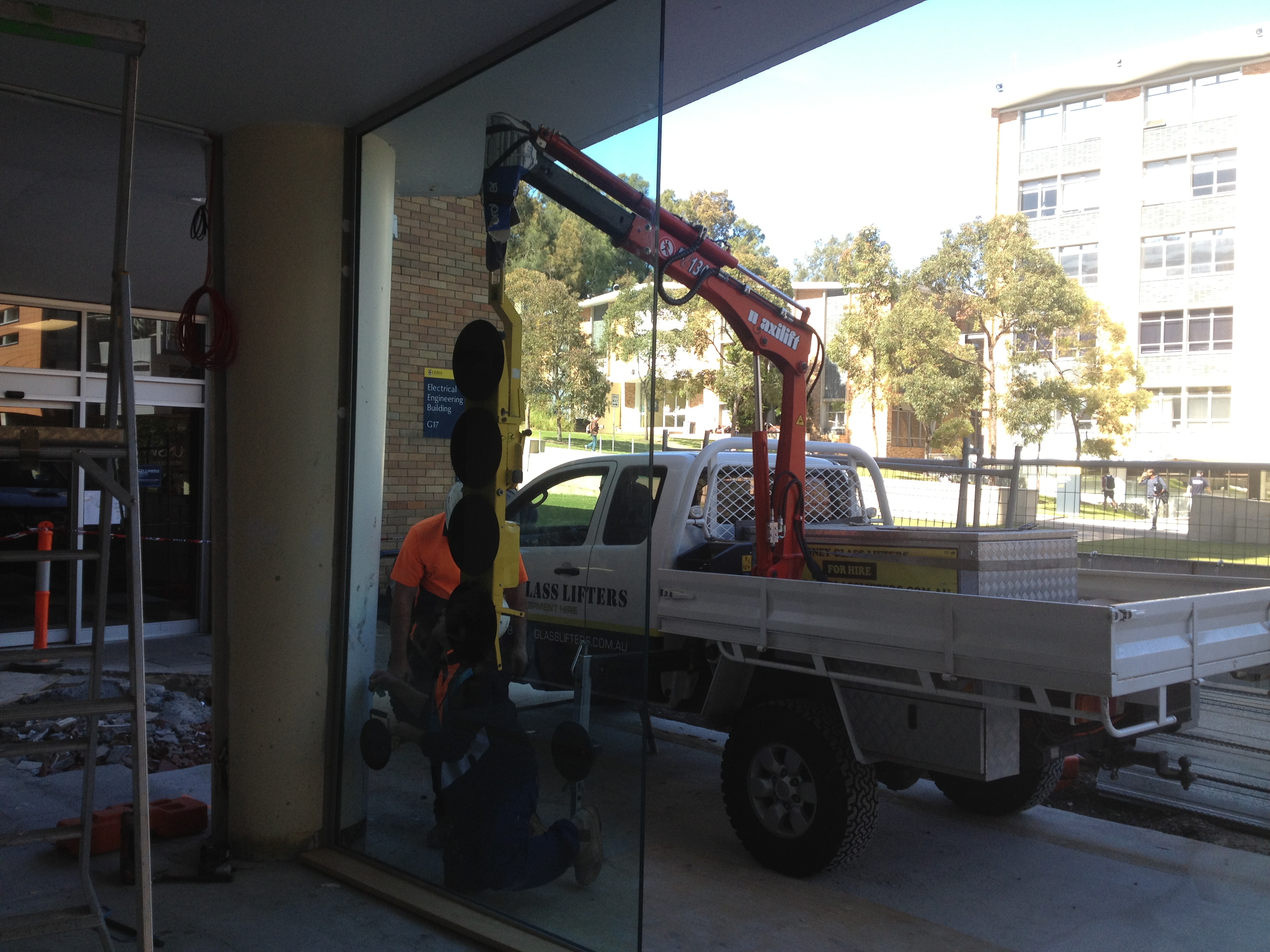

  Ute Hiab
    3 TonneMini Crawler crane (MC305c-2)
    • Dry or wet hire options
    • Remote controled
    • Always supplied with sercher hook ideal for glazing when you have limited head room
  • Micro speed mode on the remote
  • Weight of crane is 3900kg
  • 12.5 meters reach (refer to load chart)
  • Cranes capacity is 2.98t at 2.5m(refer to load chart)
  • Minimum licence requirement to operate is crane is a C2
  • Supplied with all relevant safety documentation and service records

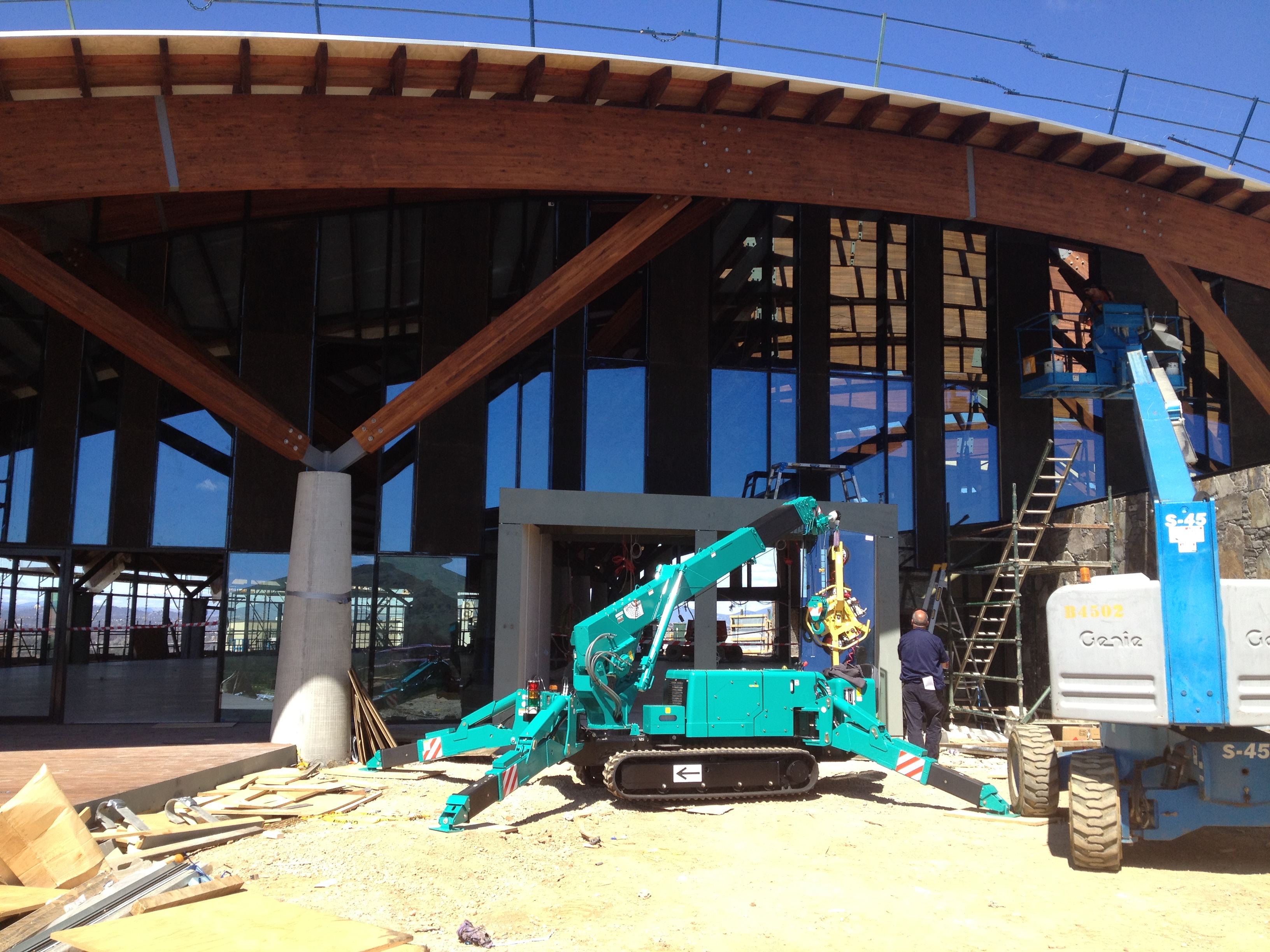

          3t mini crawler

Mini crawler / glazing attachment


  • Attached to the above crane givew 12.5 m reach
  • SWL 600Kg
  • Pad spread smaller 960mm x 850mm (400kg)
  • Pad spread larger 1880mm x 1280mm (600kg)
  • Wireless Remote control
  • Rotating, swiveling, tilting as well as all pneumatic functions are radio controlled
  • Hydraulic operated very smooth movements
  • Provides hydraulic rotation 95° / 120° tilt and swiveling +- 40°
  • 2 independent vacuum circuits
  • Visual and acoustic warning systems
  • Battery operated



  3t with glass attachment........
