Glass Lifters



Inline 4 Pad


            • Provides manual 180° rotation & 90° tilt
          • Pad spread 1298 X 305mm
          • SWL is 320 kg
          • Battery operated
          • Lifter weight 34kg




inline4pad
            Curved Glass Lifter
    • Ideal for lifting curved or bent glass due to the deep concaved pads
    • Provides manual 180° rotation & 90° tilt
  • Pad spread 1245 X 254mm
  • SWL is 270 kg
  • Battery operated
  • Lifter weight 34kg
          4 pad inline glass lifter

Spider 4 Pad Extendable


  • This lifter provides manual 360° rotation locking at 1/4 intervals and 90° tilt
  • SWL is 320 kg
  • Basic pad spread is 715 X 833mm
  • Linear pad spread is 396 X 1987mm
  • Maximum pad spread is 1225 X 1716mm
  • Adjustable length lift bar which can adjust from 890 to 612mm perfect for glazing panels with no head room.
  • Battery operated
  • Lifter weight 56kg



  ........spider4padext

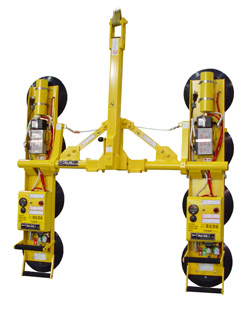

            8 pad 4 foot lifting frame

  • This lifter provides manual 180° rotation & 90° tilt
  • SWL is 635kg
  • Fixed pad spread is 1295 X 1378mm
  • Dual vacuum system
  • Battery operated
  • Lifter weight 78kg
  4 foot 8 pad lifting frame

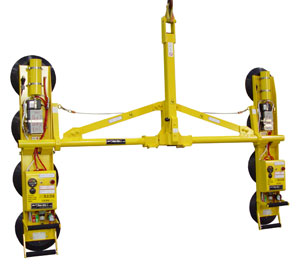

           8 pad 7 foot lifting frame
  • Very similar to the above lifter, only designed for larger pieces of glass
  • This lifter provides manual 180° rotation & 90° tilt
  • SWL is 635kg
  • Fixed pad spread is 1295 X 2140mm
  • Dual vacuum system
  • Battery operated
  • Lifter weight 84kg
  7 foot 8 pad lifting frame

Spider 4 - 8 Pad (smaller)


  • Frames provide manual 360° rotation at 1/4 intervals and 90° tilt
  • SWL is 600kg
  • Extended pad spread 1200 X 1700mm
  • Small pad spread 800 X 800mm (400kg)
  • Linear pad spread 326 X 1900mm
  • Option of having 4,5,6,7 or 8 pads in use
  • Shortened lift bar to allow glazing under overhangs (1000mm from pivot point)
  • Battery operated
  • Lifter weight 97Kg



  spider48padsm

Spider 4 - 8 Pad (larger)


  • Frame provide manual 360° rotation at 1/4 intervals and 90° tilt
  • SWL is 600kg
  • Extended pad spread 1729 X 2697mm
  • Small pad spread 902 X 1264mm
  • Linear pad spread 326 X 3098mm
  • Option of having 4, 5, 6, 7 or 8 pads in use
  • Battery operated
  spider48padlrg

SGL 900


  • Frame provides rotation locking at 1/4 intervals and 90° hydraulic tilt which holds the glass at any angle ideal for an angled glass roof
  • SWL is 12 pads (900kg) 10 pads (750kg) and 6 pads (450kg)
  • Option of turning off individual vacuum pads
  • Narrow design 160mm from face of pads to back of lift bar
  • Narrow design is perfect for glazing between scaffold and windows
  • Lift bar is 860mm from pivot point
  • Small pad spread 1300 X 780mm (450kg)
  • Linear pad spread
  • Large pad spread 2180 X 1320mm (900kg)
  • Dual vacuum systems provides safer lifting
  • Battery operated
  • Lifter weight with extension arms 74kg
  6-10 pad glass lifter

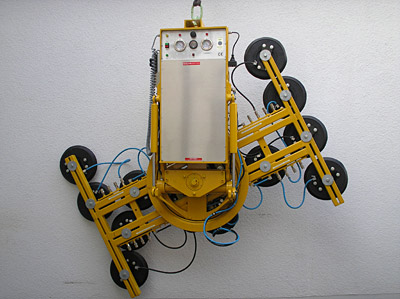

SGL 2000
  • SWL of 2000kg
  • Standard pad spread of 1750mm x 1200mm
  • Adjustable pad spread up to 4670mm x 1600mm
  • overall thickness 360mm (face of the pads to the back of lift bar)
  • Wireless Remote controlled functions including rotate, tilt, suction and blow off release.
  • Dual vacuum system provides safer lifting
  • Option of using up to 20 pads
  • High quality hydraulic controls allows precise movements
  • Tilt 90° hydraulic operated by two rams
  • Rotation 270° hydraulic operated
  • Battery Operated
  SGL2000kg
